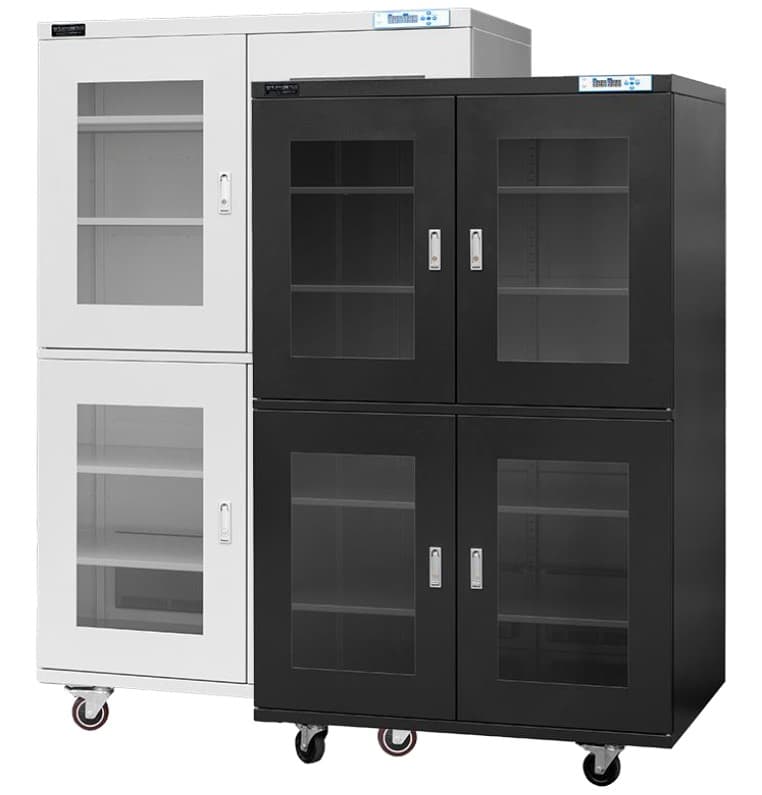

Tủ chống ẩm FXSM-1440-BE-4 1%-40%RH ESD Cho ngành điện tử, 1440 Lít

Model	FXSM-1440-BE-4
Humidity control range	1%~40% RH adjustable
Average power	15W
Maximum power	340W
Material	Cold rolled steel plate
Inner size	W1198 x D682 x H1723mm
Outer size	W1200 x D710 x H1910mm
Shelf quantity	5pcs
Shelf load	120kg
FCL load	720kg
Power supply	110V/220V 50/60HZ
N.W./G.W.	145kg/176kg
Meas.	130 x 80 x 206cm/2.2CBM
Note	Black color, ESD standard.



Applications:

It can be used for storage of ICs, BGAs, precision electronic components, special chemicals, semiconductor devices, optical electronic devices, printed circuit boards, optical films and lenses, precision instruments and meters.

Product Features:

1. 1. The humidity display range is 0%~99% RH, and the temperature display range is -9 °C~99 °C; LED Segment displays; Display accuracy: humidity ± 3% RH; temperature

      ± 1 °C;

   2. The cabinet and the shelves are made of 1.2mm high-quality steel plates; The door is inlaid with 3.2mm high-strength tempered glass; Magnetic sealing strip is used for sealing; Movable casters with brake are easy for movement and fixing;
   3. The surface treatment of anti-static type adopts electrostatic powder spraying, and the surface resistance value is 106~108Ω ;
   4. The upgraded dehumidifying unit is more energy-saving;
   5. The shell of dehumidifying unit is made of high temperature flame retardant material;

   6. It has the functions of fault prompt, panel dormancy, power-off memory and calibration setting; 7)The products passed CE, RoHS and C-Tick certificates;

      Options for customer’s special demands:

      1. Stainless steel cabinet;
      2. Heating system up to 40°C;
      3. Alarm system with indicator light; Buzzer alarm system;
      4. Data logging system by USB connection with computer for data reading and printing;

      5. N2 dehumidification function to achieve fast dehumidification effect (except 100L);

Application scope and storage reference of dry cabinet:

Relative Humidity	Suitable storage of items
60%~50%	Paintings, antiques, paper money, ancient books, fax paper, copy paper
50%~40%	Cameras, video cameras, lenses, microscopes, endoscopes, binoculars, magnetic tape, disks, records, film, photographic film, musical instruments, stamps, furs, medicinal materials, tea, coffee, cigarette and etc.
40%~20%	Precision hardware molds, measurement instruments, all electronic parts, PC boards, metallic powders, semiconductors, medical supplies and etc.
20% or less	Sample, standard measuring tools, seeds, pollen, seedlings etc.
10%~20%	Electronic Components, IC, BGA and etc.
10% or less	Particularly sensitive to humidity of materials, such as IC, BGA and etc. with higher humidity requirements
